Ultra Precision Optical Sapphire Prism Coated Custom Optical Glass Prism
  • name
  • name
  • name

Ultra Precision Optical Sapphire Prism Coated Custom Optical Glass Prism

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Material::
Optical Sapphire
Orientation::
C-axis
Tolerance::
±0.05 Mm
Surface Quality:
60/40,40/20,20/10,10/5
Coating:
According To Customer Requirements
Clear Aperture:
90%
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

Ultra Precision Optical Sapphire Prism

,

Optical Sapphire Prism Coated

,

Custom Optical Glass Prism

Product Description

Ultra Precision Optical Sapphire Prism Coated for Custom Requirements

1.Feature of sapphire prism:

♦Sapphire monocrystal is high purity, supreme functional material​

♦It bears high temperature, high hardness, high-temperature chemical stability and good thermal conductivity

♦The crystal is widely used in industries, national defense and scientificresearch and so on

♦This material is also an important single crystal substrate and superconducting film substrate

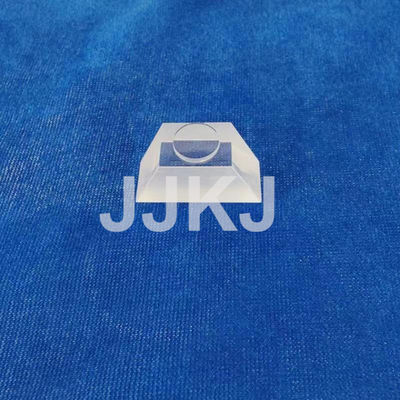

2.Product Image:

Ultra Precision Optical Sapphire Prism Coated Custom Optical Glass Prism 0

Ultra Precision Optical Sapphire Prism Coated Custom Optical Glass Prism 1Ultra Precision Optical Sapphire Prism Coated Custom Optical Glass Prism 2

3.Specification of sapphire prism:

We can customize all prism in different diameter specifications according to customers’ different requirements.



Technical requirements:

Product Name
Sapphire Prism
Material
Optical Sapphire
Size range
1-300 mm
Diameter tolerance
+0/-0.05 mm
Thickness tolerance
±0.05 mm
Parallelism tolerance
±2''~±10''
Surface quality
60/40 or better
Bevelling
0.1-0.5 mm
Surface precision
λ/6 per @633nm



Feature:
a) High transmission can be achieved, using the hypotenuse face in total internal reflection (TIR), with an antireflection coating on the entrance and exit faces.
b) The prism can be used as an internal or external mirror by applying a metallic coating on the hypotenuse.
c) We also offer standard grade for standard applications and ultra-precision grade right angle prisms for critical application.

Ultra Precision Optical Sapphire Prism Coated Custom Optical Glass Prism 3
