Fine Grind Unpolished Optical Sapphire Rods Dia 0.1mm-100mm
  • name
  • name
  • name

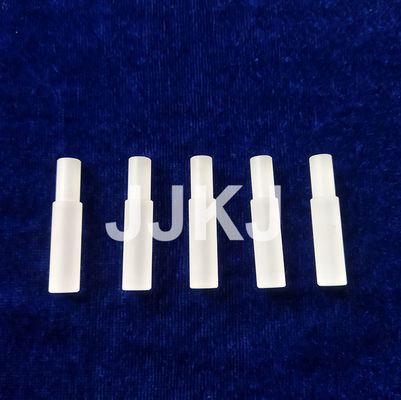

Fine Grind Unpolished Optical Sapphire Rods Dia 0.1mm-100mm

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Material::
Optical Grade Sapphire
Orientation::
C-axis
Diameter:
0.1-100mm
Diameter Tolerance:
±0.05mm
Length:
0.1-100mm
Length Tolerance:
±0.05mm
Surface:
Fine Grind
Roughness:
1.0μm
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

Unpolished Optical Sapphire Rods

,

Fine Grind Unpolished Optical Sapphire

,

Dia 0.1mm Sapphire Rods

Product Description

Unpolished Optical Sapphire Rods The Ultimate Solution for Optical Applications

Sapphire Materials

Sapphire is grown using various different methods, each with its advantages. By offering Sapphire grown by Stepanov, Czochralski, Kryopolus and HDSM methods, Roditi ensure that the specification is met with the best production time and cost in mind.



Boules, Ingots and Blanks

Unprocessed, single crystal Sapphire takes the form of a boule before being cut and polished into the required forms.



The boule is a large, cylindrical-like piece of Sapphire with no ground, polished or flat faces and offers any crystallographic orientation of components, such as c, m, r and a-cut. Because of Sapphire's tremendous hardness, the cutting and processing is done with diamond tools.



Boules such as this are processed into blanks and ingots ready for further processing and polishing. Such blanks and ingots are uniformly shaped, usually as cylinders, and have ground surfaces.



Fine Grind Unpolished Optical Sapphire Rods Dia 0.1mm-100mm 0



Properties of Single Crystal Sapphire:

Chemical formula Al₂O₃
Purity 99.999%
Crystal structure Hexagonal
Density 3.98g/cm³
Hardness Mohs 9
Fusion point 2045℃
Boiling point 2980℃
Coefficient of Thermal Expansion 5.8×10 -6 /K
Specific heat 0.418W.s/g/k
Thermal conduction 25.12W/m/k(@100°C)
Refractive index no=1.768 ne=1.760
dn/dt 13×10-6/K(@633nm)
Transmission T≈80%(0.3-5μm)
Permittivity 11.5(//c), 9.3(⊥c)



Fine Grind Unpolished Optical Sapphire Rods Dia 0.1mm-100mm 1Fine Grind Unpolished Optical Sapphire Rods Dia 0.1mm-100mm 2Fine Grind Unpolished Optical Sapphire Rods Dia 0.1mm-100mm 3



Our related products:

Sapphire optical windows/Sapphire prism/Sapphire Rod/Sapphire Pin/Sapphire tube/Sapphire optical device

Fine Grind Unpolished Optical Sapphire Rods Dia 0.1mm-100mm 4
