Dia 230mm Coated Optical Sapphire Ball Lens C Axis Orientation Surface Finish

Products

Optical Sapphire Shaped Pieces

Dia 230mm Coated Optical Sapphire Ball Lens C Axis Orientation Surface Finish

MOQ:	10 pcs
Delivery Period:	1-4 weeks
Payment Method:	T/T,Western Union,
Supply Capacity:	100000 pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

jingjing

Certification

ISO9001

Product Name:

Sapphire Ball Lens

Material:

Optical Grade Sapphire

Orientation::

C-axis

Clear Aperture:

90%

Tolerance::

±0.05mm

Surface Quality:

60/40,40/20,20/10,10/5

Coating:

According To Customer Requirements

Minimum Order Quantity:

10 pcs

Delivery Time:

1-4 weeks

Payment Terms:

T/T,Western Union,

Supply Ability:

100000 pcs/Month

Highlight:

Coated Optical Sapphire Ball

Dia 230mm Sapphire Ball Lens

C Axis Sapphire Ball Lens

Product Description

Custom Coated Optical Sapphire Ball Lens with C axis Orientation Surface Finish

Specification for Sapphire Ball Lens

Sapphire is a single crystal aluminum oxide (Al2O3). It is one of the hardest materials. Sapphire has good transmission characteristics over the visible, and near IR spectrum. It exhibits high mechanical strength, chemical resistance, thermal conductivity and thermal stability. It is often used as window materials in specific field such as space technology where scratch or high temperature resistance is required

Sapphire glass are ideal for applications where high pressure, high temperature, high thermal loads, vacuum, scratch resistance, corrosion resistance, small coefficient of friction as well as optical and insulating properties are a consideration.

Technical Parameters:

Product Name	Sapphire Ball Lens
Materials	Synthetic sapphire crystal
Dimeter	Diamm to 230mm/customize available
Tolerance	±0.05 mm
Surface Quality	80/50
Chamfer	Fine ground or polished
Coating	according to customer's requirement

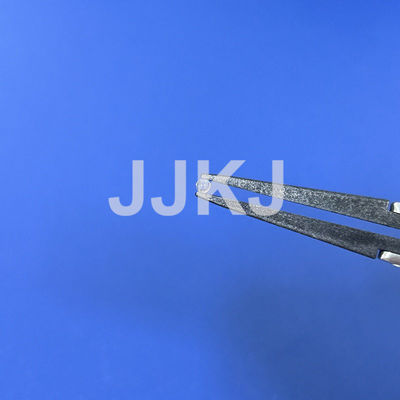

Dia 230mm Coated Optical Sapphire Ball Lens C Axis Orientation Surface Finish 0

Feature of Our Sapphire Ball Lens:

-Transmits Wavelengths Ranging From UV to Mid-Infrared
-Extreme Surface Hardness Chemical Resistance
-Thinner and Stronger than Standard Glass Windows
-High thermal conductivity
-High bulk damage threshold

Our Sapphire Ball Lens Polishing Processes Enable Us To Polish Sapphire Windows With High Precision Optical Flatness, Low Scatter Surface Finish And Without Surface And Subsurface Damage.

Dia 230mm Coated Optical Sapphire Ball Lens C Axis Orientation Surface Finish 2

FAQ

Q:What is your minimum order requirement?
A:MOQ: 10 pieces

Q:How long will it take to execute my order ?
A:10-25 days after confirming the payment.

Q:Can you give warranty of your products ?
A:We promise the quality, if the quality has any problems, we will produce new produces or return you money.

Q:How to pay?
A:T/T, Paypal, West Union,etc.

Q:Can you produce custom optics?
A:Yes, we can produce custom optics
