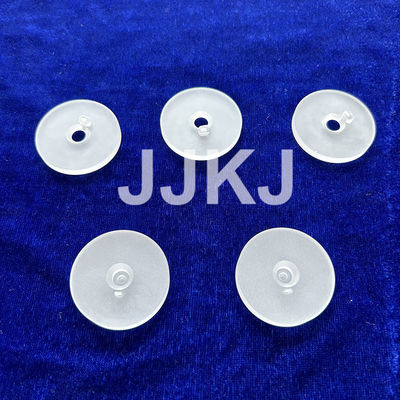

C Axis Custom Sapphire Windows Optical Sapphire Crystal Glass
  • name
  • name

C Axis Custom Sapphire Windows Optical Sapphire Crystal Glass

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Material:
Optical Grade Sapphire
Purity:
99.999%
Orientation:
C-axis
Density:
3.98g/cm³
Hardness Mohs:
9.0
Diameter:
0.1-100mm
Diameter Tolerance:
±0.05mm
Thickness:
0.1-100mm
Thickness Tolerance:
±0.05mm
Surface:
Fine Grind
Roughness:
1.0μm
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

C Axis Custom Sapphire Windows

,

C Axis Sapphire Crystal Glass

,

Optical Sapphire Crystal Glass

Product Description

Factory manufacture C-axis optical sapphire blank window glass

Welcome to know sapphire:



Sapphire is composed of alumina, and its crystal structure is hexagonal lattice structure.


Synthetic sapphire common application facets are A-Plane,C-Plane, and R-Plane. Due to the wide optical penetration band of sapphire, it has good light transmission from near ultraviolet (190nm) to mid-infrared. Therefore, it is widely used in optical components, infrared devices, high-intensity laser lens materials.


Sapphire also has the characteristics of high sound velocity, high temperature resistance, corrosion resistance, high hardness, high light transmittance, high melting point (2045℃), etc., so it is often used as a material for photoelectric components.



C Axis Custom Sapphire Windows Optical Sapphire Crystal Glass 0



Properties of Single Crystal Sapphire:

Chemical formula Al₂O₃
Purity 99.999%
Crystal structure Hexagonal
Density 3.98g/cm³
Hardness Mohs 9
Fusion point 2045℃
Boiling point 2980℃
Coefficient of Thermal Expansion 5.8x10 -6/K
Specific heat 0.418W.s/g/k
Thermal conduction 25.12W/m/k(@100°C)
Refractive index no=1.768 ne=1.760
dn/dt 13×10-6/K(@633nm)
Transmission T≈80%(0.3-5μm)
Permittivity 11.5(//c), 9.3(⊥c)





C Axis Custom Sapphire Windows Optical Sapphire Crystal Glass 1



Our Related Products:

C Axis Custom Sapphire Windows Optical Sapphire Crystal Glass 2C Axis Custom Sapphire Windows Optical Sapphire Crystal Glass 3
