K9 BK7 Fused Silica Sapphire Optical Glass Blanks With Hole Fine Grinding

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Material:
Sapphire
Purity:
99.999%
Orientation:
C-axis
Density:
3.98g/cm³
Hardness Mohs:
9.0
Diameter:
1-500mm
Diameter Tolerance:
±0.03mm
Thickness:
0.1-100mm
Thickness Tolerance:
±0.03mm
Surface:
Fine Grind
Roughness:
1.0μm
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

BK7 Fused Silica Sapphire Optical

,

K9 Fused Silica Sapphire Optical

,

Fused Silica Sapphire Optical Glass Blanks

Product Description

High Quality Sapphire/BK7/K9/Fused Silica Optical Glass Blanks with hole Fine Grinding

Sapphire Materials

Sapphire is grown using various different methods, each with its advantages. By offering Sapphire grown by Stepanov, Czochralski, Kryopolus and HDSM methods, Roditi ensure that the specification is met with the best production time and cost in mind.



Boules, Ingots and Blanks

Unprocessed, single crystal Sapphire takes the form of a boule before being cut and polished into the required forms.



The boule is a large, cylindrical-like piece of Sapphire with no ground, polished or flat faces and offers any crystallographic orientation of components, such as c, m, r and a-cut. Because of Sapphire's tremendous hardness, the cutting and processing is done with diamond tools.



Boules such as this are processed into blanks and ingots ready for further processing and polishing. Such blanks and ingots are uniformly shaped, usually as cylinders, and have ground surfaces.

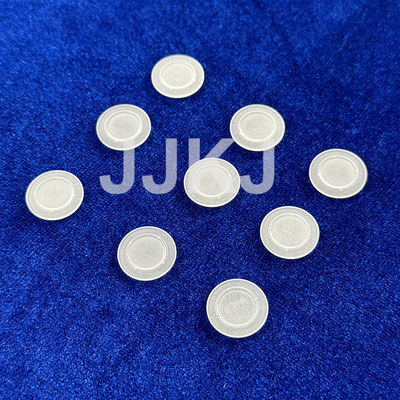

K9 BK7 Fused Silica Sapphire Optical Glass Blanks With Hole Fine Grinding 0



Properties of Single Crystal Sapphire:

Product Name Sapphire Fine Grinding Surface Optical Glass Blanks
Material Optical Sapphire
Diameter 0.1-500mm
Tolerance as request
Thickness 0.1-100mm
Tolerance as request
Surface Fine grinding
Bevel standard protective bevel



K9 BK7 Fused Silica Sapphire Optical Glass Blanks With Hole Fine Grinding 1



FAQ

Q: What are your main products?

A: Sapphire optical windows,sapphire lenses,sapphire rod/pin,sapphire tube,Sapphire Dome,Sapphire Prism



Q: How long is your delivery time?

A: In general delivery time is about 25 days for custom produced optics,except stock ones or some special optics.



Q: Do you provide free samples?

A: We can provide free samples if we have stock optics as your request,but the freight is yours.



Q:What is your MOQ?

A:MOQ is 10pcs.



Q: What is your terms of payment?

A:T/T, Western Union ,Paypal.
