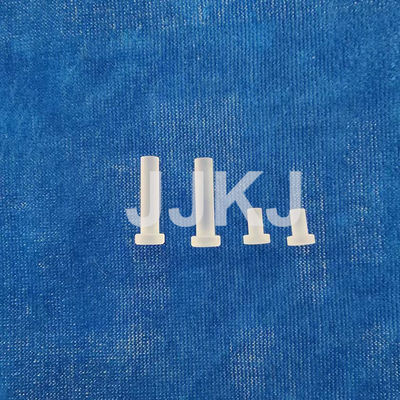

T Shaped Optical Crystal Sapphire Rod Purity 99.999% Sapphire Al2O3
  • name
  • name

T Shaped Optical Crystal Sapphire Rod Purity 99.999% Sapphire Al2O3

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Product Name:
T-shape Sapphire Rod
Material:
Optical Sapphire
Purity:
99.999%
Orientation:
C-axis
Hardness Mohs:
9
Density:
3.98g/cm³
Diameter:
0.5-300mm
Diameter Tolerance:
±0.03mm
Length:
0.1-300mm
Length Tolerance:
±0.03mm
Surface:
Fine Grind
Roughness:
1.0μm
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/
Highlight:

T Shaped Optical Crystal Sapphire Rod

,

Sapphire Rod Purity 99.999%

,

Purity 99.999% Sapphire Al2O3

Product Description

Fine Grinding T-shape Sapphire Optical crystal Rod Purity 99.999%

Sapphire Materials

Sapphire is grown using various different methods, each with its advantages. By offering Sapphire grown by Stepanov, Czochralski, Kryopolus and HDSM methods, Roditi ensure that the specification is met with the best production time and cost in mind.



Boules, Ingots and Blanks

Unprocessed, single crystal Sapphire takes the form of a boule before being cut and polished into the required forms.



The boule is a large, cylindrical-like piece of Sapphire with no ground, polished or flat faces and offers any crystallographic orientation of components, such as c, m, r and a-cut. Because of Sapphire's tremendous hardness, the cutting and processing is done with diamond tools.



Boules such as this are processed into blanks and ingots ready for further processing and polishing. Such blanks and ingots are uniformly shaped, usually as cylinders, and have ground surfaces.



T Shaped Optical Crystal Sapphire Rod Purity 99.999% Sapphire Al2O3 0

Properties of Single Crystal Sapphire:

Chemical formula Al₂O₃
Purity 99.999%
Crystal structure Hexagonal
Density 3.98g/cm³
Hardness Mohs 9
Fusion point 2045℃
Boiling point 2980℃
Coefficient of Thermal Expansion 5.8x10 -6/K
Specific heat 0.418W.s/g/k
Thermal conduction 25.12W/m/k(@100°C)
Refractive index no=1.768 ne=1.760
dn/dt 13×10-6/K(@633nm)
Transmission T≈80%(0.3-5μm)
Permittivity 11.5(//c), 9.3(⊥c)


T Shaped Optical Crystal Sapphire Rod Purity 99.999% Sapphire Al2O3 1T Shaped Optical Crystal Sapphire Rod Purity 99.999% Sapphire Al2O3 2T Shaped Optical Crystal Sapphire Rod Purity 99.999% Sapphire Al2O3 3
Product Paramenters:

Product Name T-shape Sapphire Rod
Material Optical Sapphire

Diameter

 0.5-300mm
Tolerance as request
Length 0.1-300mm
Tolerance as request
Surface Fine Grinding
Roughness 1.0μm


FAQ
Q:What are your main products?
A:Sapphire optical windows,sapphire lenses,sapphire rod/pin,sapphire tube,sapphire Prism,Sapphire Dome


Q:How long is your delivery time?
A:In general delivery time is about 25 days for custom produced optics,except stock ones or some special optics.

Q:Do you provide free samples?
A:We can provide free samples if we have stock optics as your request,but the freight is yours.

Q:What is your MOQ?
A:MOQ is 10pcs

Q:What is your terms of payment?
A:T/T, Western Union ,Paypal

Tags:

Optic Sapphire,

Sapphire optical components,

custom sapphire windows
