KY Method C AXIS Optical Sapphire Tubes Fine Grinding Sapphire Glass Tube
  • name
  • name

KY Method C AXIS Optical Sapphire Tubes Fine Grinding Sapphire Glass Tube

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Product Name:
Sapphire Tube
Growth Method:
Kyropoulos Method
Material:
Optical Sapphire Crystal
Orientation:
C-AXIS
Purity:
99.999%
Hardness:
Mohs 9
Diameter:
6-300mm
Tolerance:
As Request
Length:
1-300mm
Surface:
Polished Or Rough
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

C AXIS Optical Sapphire Tubes

,

KY Method Sapphire Tubes

,

Fine Grinding Sapphire Glass Tube

Product Description

KY method C-AXIS Optical Sapphire Tubes Fine Grinding Sapphire Tubes

Our sapphire tube, manufactured by KY method, can be manufactured according to customers' required needs and  specifications to satisfy different kinds of demands. With hardness of Mohs 9.0, is second hardness only to the hardest diamond. Our sapphire tubes have excellent wear resistance, can be used in high temperature and wear challenges environment, and maintain good wear resistance and scraping resistance. Having excellent mechanical and chemical properities, our sapphire tubes still have a steady performance even in high temperature environment.
Technical Parameters:
Product Name Sapphire tube
Material Optical Sapphire
Purity 99.999%
Orientation C-AXIS
Diameter 6-300mm
Diameter tolerance as request
Length 1-300mm
Length tolerance as request
Surface  Fine Grinding
Chamfer

0.1-0.3mm*45°



Product properities



1. High hardness: Sapphire tubes hardness is Mohs 9.0 which is sencond hardness only to the hardnest diamond, making sapphire tubes a good wear resistance and scratching resistance and can stay stable in relative hard condition.



2. Good wear resistance: Owing to sapphire tubes' high hardness, sapphire tubes' wear resistance is very great. Sapphire tubes can maintain structual integrity  and surface finishment after a long term use.



3. Good chemical performance: Sapphire tubes have a good chemical performance, they have a resistance to chemical corrosion, they are a good aterial against acid and corrosion.



4. High temperature resistance: Sapphire tubes's melting point  is 2053℃, their highest working temperature is 1950℃. So sapphire tubes can be applied in high temperature condotions



5. Extensive use: Sapphire tubes can be used in extensive fields, from laser systmes, optical instrements, high temperature fumaces to chemical instrument processing.

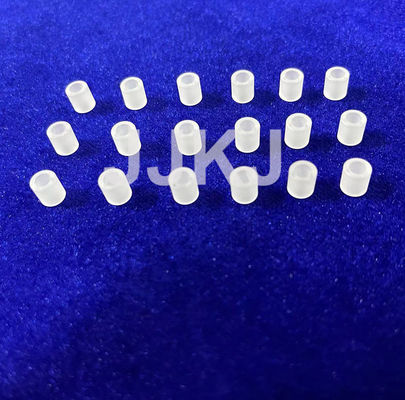

Picture show of optical sapphire tube

KY Method C AXIS Optical Sapphire Tubes Fine Grinding Sapphire Glass Tube 0

KY Method C AXIS Optical Sapphire Tubes Fine Grinding Sapphire Glass Tube 1







KY Method C AXIS Optical Sapphire Tubes Fine Grinding Sapphire Glass Tube 2
