Ultra Clear Optical Grade Sapphire Tube With Hole 90% Clear Aperture

Products

Optical Sapphire Shaped Pieces

Ultra Clear Optical Grade Sapphire Tube With Hole 90% Clear Aperture

MOQ:	10 pcs
Delivery Period:	1-4 weeks
Payment Method:	T/T,Western Union,
Supply Capacity:	100000 pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

jingjing

Certification

ISO9001

Product Name:

Sapphire Tube With Hole

Material:

Optical Grade Sapphire

Orientation:

C-axis

Clear Aperture:

90%

Outside Diameter:

6-200mm

Tolerance:

0/-0.05mm

Length:

1-110mm

Length Tolerance:

0/-0.05mm

Wall Thickness:

≥1mm

Surface Quality:

80/50

Coating:

According To Customer Requirements

Minimum Order Quantity:

10 pcs

Delivery Time:

1-4 weeks

Payment Terms:

T/T,Western Union,

Supply Ability:

100000 pcs/Month

Highlight:

Optical Grade Sapphire Tube

Ultra Clear Sapphire Tube

Product Description

Ultra Clear Optical Grade Sapphire Tube With Hole 90% Clear Aperture

Sapphire Materials:

Sapphire is grown using various different methods, each with its advantages. By offering Sapphire grown by Stepanov, Czochralski, Kryopolus and HDSM methods, Roditi ensure that the specification is met with the best production time and cost in mind.

Boules, Ingots and Blanks

Unprocessed, single crystal Sapphire takes the form of a boule before being cut and polished into the required forms.

The boule is a large, cylindrical-like piece of Sapphire with no ground, polished or flat faces and offers any crystallographic orientation of components, such as c, m, r and a-cut. Because of Sapphire's tremendous hardness, the cutting and processing is done with diamond tools.

Boules such as this are processed into blanks and ingots ready for further processing and polishing. Such blanks and ingots are uniformly shaped, usually as cylinders, and have ground surfaces.

Product Paramenters:

Product Name	Sapphire Tube with Hole
Material	Optical Grade Sapphire
Orientation	C-axis
Clear Aperture	90%
Outside diameter	6-200 mm
Tolerance	0/-0.05mm
Length	1-100 mm
Length Tolerance	0/-0.05mm
Wall thickness	≥1 mm
Surface Quality	80/50

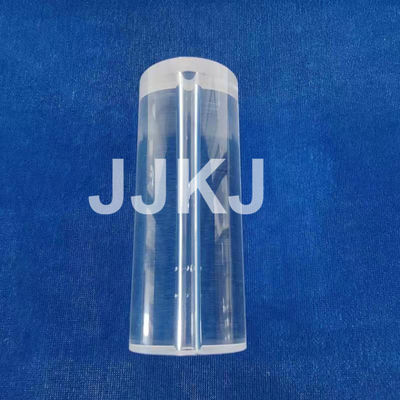

Ultra Clear Optical Grade Sapphire Tube With Hole 90% Clear Aperture 0

Ultra Clear Optical Grade Sapphire Tube With Hole 90% Clear Aperture 2
