Al2O3 Single Crystal Sapphire Tube Mohs 9 Sapphire Crystal Lens

Products

Sapphire Optical Windows

Sapphire Step Windows

Sapphire Rod

Sapphire Tube

Sapphire Prism

Optical Sapphire Shaped Pieces

Optical Sapphire Ball

Sapphire Dome

Unpolished Optical Sapphire

Large Optical Sapphire

Optical Sapphire Ring

Optical Ruby

Contact Now

Al2O3 Single Crystal Sapphire Tube Mohs 9 Sapphire Crystal Lens

MOQ:	10 pcs
Delivery Period:	1-4 weeks
Payment Method:	T/T,Western Union,
Supply Capacity:	100000 pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

jingjing

Certification

ISO9001

Material:

Sapphire Crystal

Orientation:

C-AXIS

Hardness:

Mohs 9

Purity:

99.999%

Crystal System:

Hexagonal

Surface:

Polished Or Rough

Outside Diameter:

5-200mm

Tolerance:

+0.05mm

Length:

1-110mm

Length Tolerance:

+0.05mm

Wall Thickness:

≥1mm

Applications:

Optical, Medical, Industrial

Feature:

Heat And Pressure Resistance

Minimum Order Quantity:

10 pcs

Delivery Time:

1-4 weeks

Payment Terms:

T/T,Western Union,

Supply Ability:

100000 pcs/Month

Highlight:

Al2O3 Single Crystal Sapphire Tube

Mohs 9 Sapphire Crystal Lens

Sapphire Tube Mohs 9

Product Description

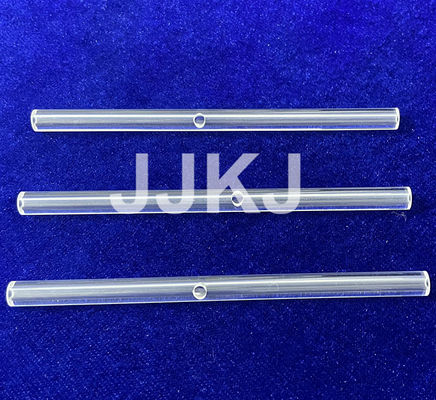

Polished C-AXIS Sapphire Components Al₂O₃ Single Crystal Sapphire Tube with Hole

Why choose Sapphire?
One of the hardest materials available

Superior IR & UV transmission compared to other optical materials

Highly scratch & abradant resistant

Highly chemical resistant

Maximum temperature rating of almost 2000℃

Excellent dielectric & loss tangent performance

Al2O3 Single Crystal Sapphire Tube Mohs 9 Sapphire Crystal Lens 0

Technical Parameters:

Material	Sapphire Crystal
Orientation	C-AXIS
Hardness	Mohs 9
Purity	99.999%
Crystal System	Hexagonal
Surface	Polished Or Rough
Outside diameter	5-200 mm
Tolerance	+0.05 mm
Length	1-110 mm
Length Tolerance	+0.05 mm
Wall thickness	≥1 mm
Applications	Optical, Medical, Industrial

FAQ:

Q: What are your main products?

A: Sapphire optical windows,sapphire lenses,sapphire rod/pin,sapphire tube,Sapphire prism,Sapphire/Ruby Ball

Q: How long is your delivery time?

A: In general delivery time is about 25 days for custom produced optics,except stock ones or some special optics.

Q: Do you provide free samples?

A: We can provide free samples if we have stock optics as your request,but the freight is yours.

Q:What is your MOQ ?

A:MOQ is 10pcs

Q: What is your terms of payment ?

A:T/T, Western Union ,Paypal
