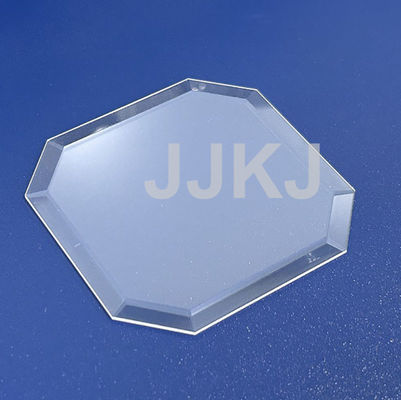

Crystal Sapphire Glass Windows High Hardness Synthetic Sapphire Window

Crystal Sapphire Glass Windows High Hardness Synthetic Sapphire Window

MOQ: 10 pcs
Standard Packaging: packed in Capacitor paper +Sponge paper+paper case
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Place of Origin
China
Brand Name
Jingjing
Certification
ISO9001
Material:
Optical Sapphire
Refractive Index At Ne::
1.7771
Diamter:
0.1-500mm
Tolerance:
±0.03mm
Thickness:
0.1-100mm
Thickness Tolerance:
±0.03mm
Parallelism:
≤3 ARC Min
Surface Quality:
DSP 40/20
Chamfer:
0.1-0.5mm*45
Clear Aperture:
90%
Ttransmittance:
99% At 635nm After Coating
Advantage:
Wearable, Anti-High Temperature, High Strength
Use:
Optical
Minimum Order Quantity:
10 pcs
Packaging Details:
packed in Capacitor paper +Sponge paper+paper case
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

Crystal Sapphire Glass Windows

,

High Hardness Synthetic Sapphire Window

,

Sapphire Glass Windows High Hardness

Product Description

Customized High Hardness Sapphire Crystal Optical Windows for Optical Purpose

Sapphire is a single crystal aluminum oxide (Al2O3),is renowned for its exceptional optical properties and wide range of applications in various industries. Sapphire's remarkable attributes, such as high hardness, excellent optical transparency, chemical stability, and thermal conductivity, make it an ideal material for optical components in demanding environments.

Sapphire optical components' properties:

1.High Hardness:Sapphire is one of the hardest known materials, second only to diamond on the Mohs scale. This hardness makes sapphire optical components resistant to scratching and abrasion, ensuring long-term durability and reliability.

2.Excellent Optical Transparency:Sapphire exhibits exceptional optical transparency across a wide spectrum, from ultraviolet (UV) to near-infrared (NIR) wavelengths. This property allows sapphire optics to transmit light with minimal absorption or scattering, making them suitable for various optical applications.

3.Chemical Stability:Sapphire is chemically inert and resistant to corrosion, even when exposed to harsh chemicals and environments. This stability ensures that sapphire optical components maintain their optical performance over time, making them suitable for use in challenging conditions.

4.High Thermal Conductivity:Sapphire possesses high thermal conductivity, allowing it to efficiently dissipate heat generated during operation. This property helps prevent thermal distortion and ensures optical stability, particularly in high-power laser applications.

5.Wide Temperature Range:Sapphire optical components can withstand a broad temperature range, from cryogenic temperatures to high temperatures exceeding 2000°C. This thermal stability makes sapphire optics suitable for use in extreme environments, such as space exploration and industrial processes.

6.Low Fluorescence: Sapphire exhibits minimal fluorescence when exposed to certain wavelengths of light, making it suitable for fluorescence microscopy and other applications requiring low background noise.

7.High Mechanical Strength: In addition to its hardness, sapphire also possesses high mechanical strength, allowing it to withstand mechanical stress and pressure without deformation or breakage.

8.Biocompatibility: Sapphire is biocompatible and non-toxic, making it suitable for use in medical devices and biomedical applications where optical clarity and compatibility with biological tissues are essential.

Crystal Sapphire Glass Windows High Hardness Synthetic Sapphire Window 0Crystal Sapphire Glass Windows High Hardness Synthetic Sapphire Window 1Crystal Sapphire Glass Windows High Hardness Synthetic Sapphire Window 2Crystal Sapphire Glass Windows High Hardness Synthetic Sapphire Window 3

Our related products:

Crystal Sapphire Glass Windows High Hardness Synthetic Sapphire Window 4

What is a sapphire lens material?

Sapphire is the second hardest crystal next to diamond and, because of their structural strength, Sapphire crystal lenses can be made much thinner than other common materials. Chemically, Sapphire is single crystal aluminum oxide(Al2O3) and is useful in a transmission range from 0.15 to 5.5μm.

Crystal Sapphire Glass Windows High Hardness Synthetic Sapphire Window 5
