Transparent C Axis Sapphire Windows Plano Rectangle Sapphire Crystal Lens

MOQ: 10 pcs
Standard Packaging: packed in Capacitor paper +Sponge paper+paper case
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Jingjing
Certification
ISO9001
Material:
Optical Sapphire
Orientation:
C-Axis
Diamter:
0.1-500mm
Tolerance:
±0.03mm
Thickness:
0.1-100mm
Thickness Tolerance:
±0.03mm
Parallelism:
≤3 ARC Min
Surface Quality:
DSP 40/20
Chamfer:
0.1-0.5mm*45
Clear Aperture:
90%
Ttransmittance:
99% At 635nm After Coating
Advantage:
Wearable, Anti-High Temperature, High Strength
Use:
Optical
Minimum Order Quantity:
10 pcs
Packaging Details:
packed in Capacitor paper +Sponge paper+paper case
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

C Axis Sapphire Windows

,

Transparent Sapphire Windows

,

Plano Rectangle Sapphire Crystal Lens

Product Description

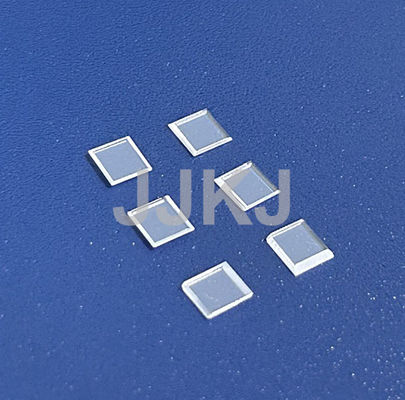

Transparent C-Axis Sapphire Windows , Sapphire Lens Plano Rectangle

WHY ARE SAPPHIRE WINDOWS SUCH HIGH PERFORMERS?

Sapphire windows and flat stock are incredibly hard, strong and wear resistant:

A sapphire window can be exposed to extreme abradants such as sand and particulates with minimal effect on the clarity of the window. This makes sapphire windows the ideal material for a variety of applications such as: Aerospace windows, downhole and drilling vision systems, inspection windows, watch crystals and gun sights.

Sapphire windows can take pressure like no other clear material, making sapphire windows the go-to transparent material for high-pressure vessels, deep sea windows and sight glasses. Combined with the exceptional thermal and chemical performance of sapphire, a sapphire window is the ideal transparency for pressurized in-process, deep sea and equipment sensors.

Sapphire flats and wear parts are used in applications in which wear is a problem. Systems like canning machines, slide plates, V-blocks, flat bearings and pushers utilize sapphire flats and blocks to extend the lifetime of the equipment and reduce downtime.

Sapphire Optical window Specifications:

Product name Sapphire Optical window
Material Optical sapphire
Length 1-500mm
Length Tolerance ±0.03mm
Thickness 0.1-100m
Thickness Tolerance ±0.03mm
Parallelism ≤3 ARC Min
Surface quality DSP 60/40
Chamfer 0.1-0.3mm*45 Degree
Clear Aperture 90%
Coating According to customer needs



Transparent C Axis Sapphire Windows Plano Rectangle Sapphire Crystal Lens 0
Sapphire Components:
Sapphire's range of superior qualities make it ideal for optical and non-optical components.
From the forward-facing optics of imaging systems to the thermal insulators in plasma systems, Sapphire's performance at extreme physical conditions often make it the preferred choice for the following:
Lightguides
Sapphire offers higher working temperatures in applications such as temperature thermometry and IPL systems, with a broad transmission.
Lenses
High optical quality Sapphire is used for lenses in systems that require durability and ruggedness where standard materials suffer from grit, impact and temperature damage. Sapphire lenses also offer high performance in laser devices, offering high thermal conductivity.
The broad transmission of Sapphire, across visible and NIR spectrums, make it ideal for FLIR imaging systems in hazardous environments, or where the reduced thickness of Sapphire lenses lead to reduced system footprint.
Tubes
Sapphire tubes, made using the Stepanov growth method, replace glass and quartz tubes in high temperature and pressure systems such as plasma applications and insulators.
Pins and Rods
As well as the optical proporties offered by Sapphire rods for fibre optcal and light-guide applications, the physical strength and inert nature of Sapphire make it ideal for engineering and structural uses

Transparent C Axis Sapphire Windows Plano Rectangle Sapphire Crystal Lens 1
