Mohs 9 Al2O3 Sapphire C Axis Sapphire Windows For Infrared Laser
  • name
  • name

Mohs 9 Al2O3 Sapphire C Axis Sapphire Windows For Infrared Laser

MOQ: 10 pcs
Standard Packaging: packed in Capacitor paper +Sponge paper+paper case
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Jingjing
Certification
ISO9001
Material:
Sapphire Single Crystal
Orientation:
C-axis
Hardness:
Mohs 9
Refractive Index At Ne::
1.7771
Length:
1-500mm
Length Tolerance:
±0.05mm
Thickness:
0.1-100mm
Thickness Tolerance:
±0.05mm
Parallelism:
≤3 ARC Min
Surface Quality:
Double Side Polisehd 60/40
Chamfer:
0.1-0.3mm*45 Degree
Clear Aperture:
90%
Ttransmittance:
99% At 635nm After Coating
Use:
Optical
Minimum Order Quantity:
10 pcs
Packaging Details:
packed in Capacitor paper +Sponge paper+paper case
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

C Axis Sapphire Windows

,

Infrared Laser Sapphire Windows

,

Mohs 9 Al2O3 Sapphire

Product Description

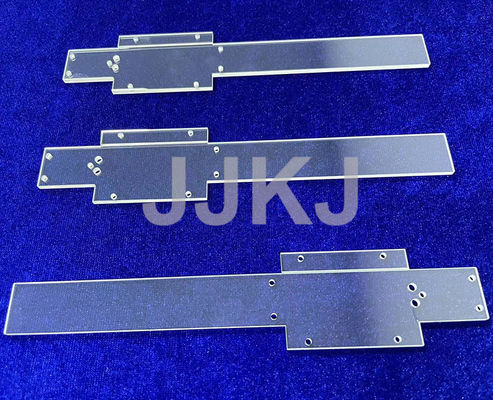

High precision C-axis Sapphire single crystal Optical Windows with hole

Sapphire Materials:
Sapphire is grown using various different methods, each with its advantages. By offering Sapphire grown by Stepanov, Czochralski, Kryopolus and HDSM methods, Roditi ensure that the specification is met with the best production time and cost in mind.
Boules, Ingots and Blanks
Unprocessed, single crystal Sapphire takes the form of a boule before being cut and polished into the required forms.
The boule is a large, cylindrical-like piece of Sapphire with no ground, polished or flat faces and offers any crystallographic orientation of components, such as c, m, r and a-cut. Because of Sapphire's tremendous hardness, the cutting and processing is done with diamond tools.
Boules such as this are processed into blanks and ingots ready for further processing and polishing. Such blanks and ingots are uniformly shaped, usually as cylinders, and have ground surfaces.

Sapphire Optical window Specifications:

Name Sapphire Optical window
Material Sapphire single crystal
Orientation C-axis
Hardness Mohs 9
Length 1-500 mm
Length tolerance ±0.05 mm
Thickness 0.1-100 mm
Thickness tolerance ±0.05 mm
Parallelism ≤3 ARC Min
Surface quality Double Side Polisehd 60/40
Chamfer 0.1-0.5mm*45 degree
Clear Aperture 90%
Coating According to customer needs



Sapphire optical components' properties:



1.High Hardness:Sapphire is one of the hardest known materials, second only to diamond on the Mohs scale. This hardness makes sapphire optical components resistant to scratching and abrasion, ensuring long-term durability and reliability.



2.Excellent Optical Transparency:Sapphire exhibits exceptional optical transparency across a wide spectrum, from ultraviolet (UV) to near-infrared (NIR) wavelengths. This property allows sapphire optics to transmit light with minimal absorption or scattering, making them suitable for various optical applications.



3.Chemical Stability:Sapphire is chemically inert and resistant to corrosion, even when exposed to harsh chemicals and environments. This stability ensures that sapphire optical components maintain their optical performance over time, making them suitable for use in challenging conditions.



4.High Thermal Conductivity:Sapphire possesses high thermal conductivity, allowing it to efficiently dissipate heat generated during operation. This property helps prevent thermal distortion and ensures optical stability, particularly in high-power laser applications.



5.Wide Temperature Range:Sapphire optical components can withstand a broad temperature range, from cryogenic temperatures to high temperatures exceeding 2000°C. This thermal stability makes sapphire optics suitable for use in extreme environments, such as space exploration and industrial processes.



6.Low Fluorescence: Sapphire exhibits minimal fluorescence when exposed to certain wavelengths of light, making it suitable for fluorescence microscopy and other applications requiring low background noise.



7.High Mechanical Strength: In addition to its hardness, sapphire also possesses high mechanical strength, allowing it to withstand mechanical stress and pressure without deformation or breakage.



8.Biocompatibility: Sapphire is biocompatible and non-toxic, making it suitable for use in medical devices and biomedical applications where optical clarity and compatibility with biological tissues are essential.


Mohs 9 Al2O3 Sapphire C Axis Sapphire Windows For Infrared Laser 0Mohs 9 Al2O3 Sapphire C Axis Sapphire Windows For Infrared Laser 1



FAQ:

Q:What is your minimum order requirement?
A:MOQ: 10 pieces



Q:How long will it take to execute my order ?
A:10-25 days after confirming the payment.



Q:Can you give warranty of your products ?
A:We promise the quality, if the quality has any problems, we will produce new produces or return you money.



Q:How to pay?
A:T/T, Paypal, West Union,etc.



Q:Can you produce custom optics?
A:Yes, we can produce custom optics





Tags:

sapphire convex lens,

ar coated sapphire crystal,

window anti reflective coating
