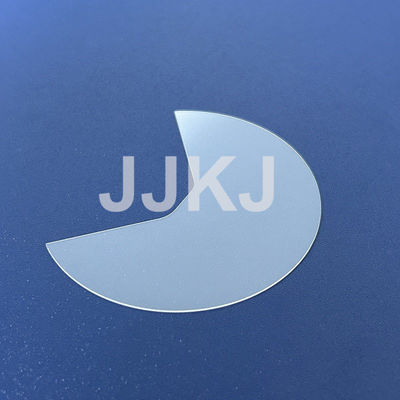

Anti High Temp Sapphire Glass Window 40/20 Sapphire Convex Lens

MOQ: 10 pcs
Standard Packaging: packed in Capacitor paper +Sponge paper+paper case
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Jingjing
Certification
ISO9001
Product Name:
Irregular Sapphire Window
Material:
Sapphire
Chemical Formula:
Al₂O₃
Purity:
99.999%
Fusion Point:
2045℃
Boiling Point:
2980℃
Diameter:
1-500mm
Diameter Tolerance:
0/-0.03mm
Thickness:
0.5-100mm
Thickness Tolerance:
±0.03mm
Parallelism:
≤3 ARC Min
Surface Quality:
40/20
Chamfer:
0.1-0.3mm*45 Degree
Clear Aperture:
85%-90%
Minimum Order Quantity:
10 pcs
Packaging Details:
packed in Capacitor paper +Sponge paper+paper case
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

Anti High Temp Sapphire Glass Window

,

Sapphire Glass Window 40/20

,

40/20 Sapphire Convex Lens

Product Description

Anti-High Temperature Sapphire optical glass window sapphire lens Double side polished 40/20

SAPPHIRE IS HIGHLY ROBUST AT EXTREME TEMPERATURES:
A supported sapphire window can be taken to 1950℃ with no change to its shape and minimal reduction to mechanical performance. Sapphire windows are the perfect material for high temperature combustion chambers, gas processing and lamp shields.
Sapphire flats are ideal for furniture, boats and standoffs in high temperature furnace systems. Sapphire flats remain flat and dimensionally "perfect" up to 1700℃. Because of sapphire's extreme chemical resistance many materials will not stick to sapphire in spite of high temperatures.
Sapphire windows and flats maintain the highest temperature rating of all optical materials in both oxidizing and inert atmospheres.
Sapphire windows can withstand considerably higher temperatures than the closest runner up material, fused silica, with zero degradation. Fused silica will degrade and devitrify over time at temperatures almost half the maximum operating temperature of sapphire.

Sapphire Optical window Specifications:

Product name Rectangle Sapphire Optical window
Material Optical sapphire
Diameter 1-500mm
Diameter Tolerance ±0.03 mm
Thickness 0.1-100m
Thickness Tolerance ±0.03 mm
Parallelism ≤3 ARC Min
Surface quality 40/20
Chamfer 0.1-0.3mm*45
Clear Aperture 90%



Anti High Temp Sapphire Glass Window 40/20 Sapphire Convex Lens 0

Anti High Temp Sapphire Glass Window 40/20 Sapphire Convex Lens 1



Our main products

Anti High Temp Sapphire Glass Window 40/20 Sapphire Convex Lens 2

Anti High Temp Sapphire Glass Window 40/20 Sapphire Convex Lens 3
