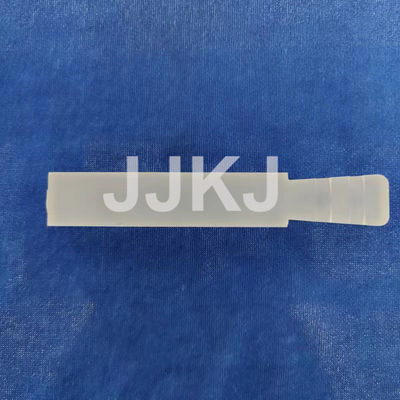

Fine Grinding Unpolished Optical Sapphire Rod Hardness 9.0

Products

Optical Sapphire Shaped Pieces

Fine Grinding Unpolished Optical Sapphire Rod Hardness 9.0

MOQ:	10 pcs
Delivery Period:	1-4 weeks
Payment Method:	T/T,Western Union,
Supply Capacity:	100000 pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

jingjing

Certification

ISO9001

Product Name:

Sapphire Rod

Material:

Optical Sapphire

Purity:

99.999%

Orientation:

C-axis

Hardness Mohs:

Density:

3.98g/cm³

Diameter:

0.1-300mm

Diameter Tolerance:

±0.03mm

Length:

0.1-300mm

Length Tolerance:

±0.03mm

Surface:

Fine Grind

Roughness:

1.0μm

Minimum Order Quantity:

10 pcs

Delivery Time:

1-4 weeks

Payment Terms:

T/T,Western Union,

Supply Ability:

100000 pcs/Month

Highlight:

Fine Grinding Unpolished Optical Sapphire

Unpolished Optical Sapphire Rod

Hardness 9.0 Sapphire Rod

Product Description

Customized Fine Grinding C-axis Optical Sapphire Rod Hardness 9.0

Sapphire Materials:

Sapphire is composed of alumina, and its crystal structure is hexagonal lattice structure.
Synthetic sapphire common application facets are A-Plane,C-Plane, and R-Plane. Due to the wide optical penetration band of sapphire, it has good light transmission from near ultraviolet (190nm) to mid-infrared. Therefore, it is widely used in optical components, infrared devices, high-intensity laser lens materials.
Sapphire also has the characteristics of high sound velocity, high temperature resistance, corrosion resistance, high hardness, high light transmittance, high melting point (2045℃), etc., so it is often used as a material for photoelectric components.

Fine Grinding Unpolished Optical Sapphire Rod Hardness 9.0 0

Properties of Single Crystal Sapphire:

Chemical formula	Al₂O₃
Purity	99.999%
Crystal structure	Hexagonal
Density	3.98g/cm³
Hardness Mohs	9
Fusion point	2045℃
Boiling point	2980℃
Coefficient of Thermal Expansion	5.8x10 -6/K
Specific heat	0.418W.s/g/k
Thermal conduction	25.12W/m/k(@100°C)
Refractive index	no=1.768 ne=1.760
dn/dt	13×10-6/K(@633nm)
Transmission	T≈80%(0.3-5μm)
Permittivity	11.5(//c), 9.3(⊥c)

Fine Grinding Unpolished Optical Sapphire Rod Hardness 9.0 1
Product Paramenters:

Product Name	Sapphire Rod
Material	Optical Sapphire
Diameter	0.1-300mm
Tolerance	as request
Length	0.1-300mm
Tolerance	as request
Surface	Fine Grinding
Roughness	1.0μm

FAQ
Q:What are your main products?
A:Sapphire optical windows,sapphire lenses,sapphire rod/pin,sapphire tube,

Q:How long is your delivery time?
A:In general delivery time is about 25 days for custom produced optics,except stock ones or some special optics.

Q:Do you provide free samples?
A:We can provide free samples if we have stock optics as your request,but the freight is yours.

Q:What is your MOQ?
A:MOQ is 10pcs

Q:What is your terms of payment?
A:T/T, Western Union ,Paypal
