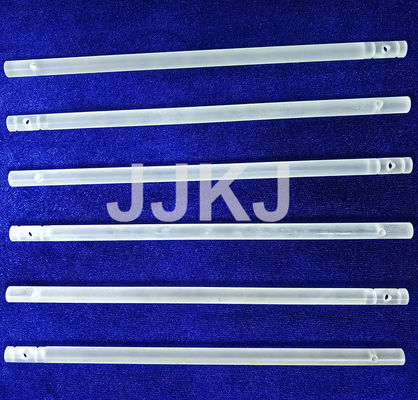

Cylindrical Sapphire Optical Lenses Unpolished Fine Grinding Sapphire Rod
  • name
  • name

Cylindrical Sapphire Optical Lenses Unpolished Fine Grinding Sapphire Rod

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Material:
Optical Sapphire
Hardness:
Mohs 9
Diameter:
1-100mm
Diameter Tolerance:
As Request
Length:
0.5-300mm
Length Tolerance:
As Request
Fusion Point:
2045°C
Structure:
Plano-convex
Use:
Optical
Application:
Medical Endoscope Lens/Optical Equipment
Density:
3.98g/cm³
Surface:
Fine Grinding
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

Cylindrical Sapphire Optical Lenses

,

Sapphire Optical Lenses Unpolished

,

Fine Grinding Sapphire Rod

Product Description

Fine Grinding Sapphire Cylindrical Lenses Optical Glass Rod Lens

Product Description:

We are specialized in the production of various specifications of optical components according to the customers' demand, And we are committed our standard more than ten years to offering our customers with excellent products, reasonable prices and high level of service.



Optical sapphire rod lens :

Rod Lens is designed for use in a variety of laser and imaging applications. The addition of this product line is part of a continued effort to support current trends toward miniaturization.

Its optical performance is similar to a cylinder lens, the light passing through the diameter of the rod lens will be focused into a line.



Technical Parameters:

Product Name Customized Sapphire Rod Lens
Material Optical Sapphire
Hardness Mohs 9
Diameter 0.1-500mm
Tolerance as request
Length 0.1-300mm
Tolerance as request
Application Medical Endoscope Lens/Optical Equipment
Coating Customize



 Applications:

Cylindrical Sapphire Optical Lenses Unpolished Fine Grinding Sapphire Rod 0Light bar is one of the types of glass fiber, lined by a bunch of multicomponent glass fiber wire melting and carefully, can be
used to spread the light transmission and low resolution image, its advantage is wide spectral range, optical transmission
efficiency is high, the output facula equalization, temperature resistant performance is good, mainly is suitable for the original
light, tail cone receive concentrating light rods can obviously improve the light output. Lens such as plano convex,plano
concave,biconvex,biconcave. Telescope :binocular telescope,digital camera



Cylindrical Sapphire Optical Lenses Unpolished Fine Grinding Sapphire Rod 1Cylindrical Sapphire Optical Lenses Unpolished Fine Grinding Sapphire Rod 2Cylindrical Sapphire Optical Lenses Unpolished Fine Grinding Sapphire Rod 3Cylindrical Sapphire Optical Lenses Unpolished Fine Grinding Sapphire Rod 4
