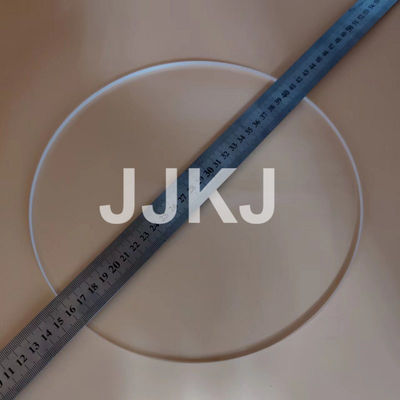

Precision Large Optical Sapphire 40/20 Surface Sapphire Glass Lens
  • name
  • name

Precision Large Optical Sapphire 40/20 Surface Sapphire Glass Lens

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Material:
Optical Grade Sapphire
Orientation:
C-axis
Surface Quality:
DSP 60/40
Clear Aperture:
90%
Diamter:
200+
Tolerance:
±0.03mm
Thickness:
5-10 Mm
Thickness Tolerance:
±0.03mm
Parallelism:
≤3 ARC Min
Chamfer:
0.3mm*45°
Use:
Optical
Coating:
According To Customer Requirements
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

Precision Large Optical Sapphire

,

Large Optical Sapphire 40/20

,

40/20 Surface Sapphire Glass Lens

Product Description

Precision Large Optical Sapphire with 40/20 Surface and C-axis Orientation

SAPPHIRE IS HIGHLY ROBUST AT EXTREME TEMPERATURES:
A supported sapphire window can be taken to 1950℃ with no change to its shape and minimal reduction to mechanical performance. Sapphire windows are the perfect material for high temperature combustion chambers, gas processing and lamp shields.
Sapphire flats are ideal for furniture, boats and standoffs in high temperature furnace systems. Sapphire flats remain flat and dimensionally "perfect" up to 1700℃. Because of sapphire's extreme chemical resistance many materials will not stick to sapphire in spite of high temperatures.
Sapphire windows and flats maintain the highest temperature rating of all optical materials in both oxidizing and inert atmospheres.
Sapphire windows can withstand considerably higher temperatures than the closest runner up material, fused silica, with zero degradation. Fused silica will degrade and devitrify over time at temperatures almost half the maximum operating temperature of sapphire.

Product Paramenters:

Product name Diameter 200+ sapphire window
Materials Optical Sapphire
Orientation C-axis
Diameter  200mm＋
Diameter Tolerance ±0.03 mm
Thickness Tolerance ±0.03 mm
Surface quality DSP 60/40
Chamfer 0.3*45°
Clear Aperture 90%
Coating As customer's request



Precision Large Optical Sapphire 40/20 Surface Sapphire Glass Lens 0



Feature of Optical Sapphire Window:
-Transmits Wavelengths Ranging From UV to Mid-Infrared
-Extreme Surface Hardness Chemical Resistance
-Thinner and Stronger than Standard Glass Windows
-High thermal conductivity
-High bulk damage threshold





Precision Large Optical Sapphire 40/20 Surface Sapphire Glass Lens 1

Tags:

large sapphire windows,

Sapphire Single Crystal,

Sapphire Glass Lens
