Diameter 290mm Sapphire Optical Ring Hardness 9.0 Sapphire Single Crystal
  • name
  • name

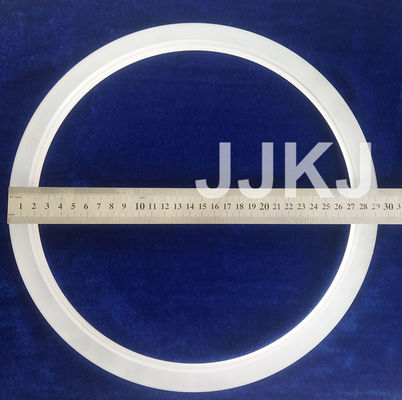

Diameter 290mm Sapphire Optical Ring Hardness 9.0 Sapphire Single Crystal

MOQ: 10 pcs
Standard Packaging: packed in Capacitor paper +Sponge paper+paper case
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Jingjing
Certification
ISO9001
Material:
Optical Sapphire
Hardness Mohs:
9
Purity:
99.999%
Density:
3.98g/cm³
Melting Point:
2045℃
Tolerance:
±0.03mm
Parallelism:
≤3 ARC Min
Chamfer:
0.1-0.3mm*45°
Surface:
Fine Grinding
Roughness:
1.0μm
Minimum Order Quantity:
10 pcs
Packaging Details:
packed in Capacitor paper +Sponge paper+paper case
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

Diameter 290mm Sapphire Optical Ring

,

Hardness 9.0 Sapphire Single Crystal

,

Hardness 9.0 Sapphire Optical Ring

Product Description

Diameter 290mm Sapphire Optical Single Crystal Ring Hardness 9.0



Sapphire is composed of alumina, and its crystal structure is hexagonal lattice structure.
Synthetic sapphire common application facets are A-Plane,C-Plane, and R-Plane. Due to the wide optical penetration band of sapphire, it has good light transmission from near ultraviolet (190nm) to mid-infrared. Therefore, it is widely used in optical components, infrared devices, high-intensity laser lens materials.
Sapphire also has the characteristics of high sound velocity, high temperature resistance, corrosion resistance, high hardness, high light transmittance, high melting point (2045℃), etc., so it is often used as a material for photoelectric components.Diameter 290mm Sapphire Optical Ring Hardness 9.0 Sapphire Single Crystal 0

Properties of Single Crystal Sapphire:
Chemical formula Al₂O₃
Purity 99.999%
Crystal structure Hexagonal
Density 3.98g/cm³
Hardness Mohs 9
Fusion point 2045℃
Boiling point 2980℃
Coefficient of Thermal Expansion 5.8×10 -6 /K
Specific heat 0.418W.s/g/k
Thermal conduction 25.12W/m/k(@100°C)
Refractive index no=1.768 ne=1.760
dn/dt 13×10-6/K(@633nm)
Transmission T≈80%(0.3-5μm)
Permittivity 11.5(//c), 9.3(⊥c)


Diameter 290mm Sapphire Optical Ring Hardness 9.0 Sapphire Single Crystal 1
Our related productsDiameter 290mm Sapphire Optical Ring Hardness 9.0 Sapphire Single Crystal 2



FAQ:
1. Can you accept OEM?
Of course,we can manufacture as per your request specification.



2. Can you deliver the goods via our shipping agent?
It's our pleasure to make the delivery using your shipping agent



3. What about your After-sales service?
We can change or refund products if there are any quality problem.



If you need more professional help, please contact us. Our technical engineers
would like to give advices according to your requirements
