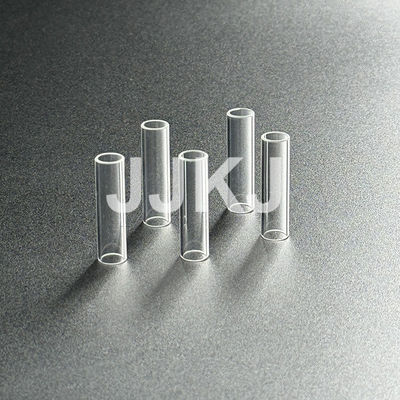

Optical Grade Sapphire Tube 60/40 Surface Sapphire Optical Glass Tube
  • name
  • name

Optical Grade Sapphire Tube 60/40 Surface Sapphire Optical Glass Tube

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Material::
Optical Grade Sapphire
Orientation::
C-axis
Diameter:
6-200mm
Diameter Tolerance:
±0.05mm
Length:
1-110mm
Length Tolerance:
±0.05mm
Surface Quality:
60/40
Coating:
According To Customer Requirements
Clear Aperture:
90%
Use:
Optical
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

Optical Grade Sapphire Tube

,

60/40 Sapphire Tube

,

60/40 Surface Sapphire Optical

Product Description

Customized Sapphire Tube with 90% Clear Aperture Precision Surface for Optical Applications

What is Sapphire merit?

①- Thinner and Stronger than Standard Glass Windows

②- Features Extreme Surface Hardness and Chemical Resistance

③- Transmits Wavelengths Ranging From UV to Mid-Infrared

Sapphire Tubes are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.



Product Paramenters:

Product Name Polished Sapphire Tube
Material Optical Sapphire
Hardness Mohs 9
Purity 99.999%
Outside diameter 6-200 mm
Tolerance ±0.05 mm
Length 1-110 mm
Length Tolerance ±0.05 mm
Wall thickness ≥1 mm
Surface quality 60/40
Clear Aperture 90%
Applications Optical, Medical, Industrial





Optical Grade Sapphire Tube 60/40 Surface Sapphire Optical Glass Tube 0

Optical Grade Sapphire Tube 60/40 Surface Sapphire Optical Glass Tube 1Optical Grade Sapphire Tube 60/40 Surface Sapphire Optical Glass Tube 2Optical Grade Sapphire Tube 60/40 Surface Sapphire Optical Glass Tube 3

FAQ:

Q:What are your main products?

A: Sapphire optical windows,sapphire lenses,sapphire rod/pin,sapphire tube,Sapphire prism,Sapphire/Ruby Ball



Q:How long is your delivery time?

A: In general delivery time is about 25 days for custom produced optics,except stock ones or some special optics.



Q:Do you provide free samples?

A: We can provide free samples if we have stock optics as your request,but the freight is yours.



Q:What is your MOQ?

A:MOQ is 10pcs



Q:What is your terms of payment?

A:T/T, Western Union ,Paypal

Tags:

sapphire capillary tube,

sapphire glass tube,

optic sapphire
