Why choose Sapphire?
One of the hardest materials available
Superior IR & UV transmission compared to other optical materials
Highly scratch & abradant resistant
Highly chemical resistant
Maximum temperature rating of almost 2000℃
Excellent dielectric & loss tangent performance
Properties of Single Crystal Sapphire:

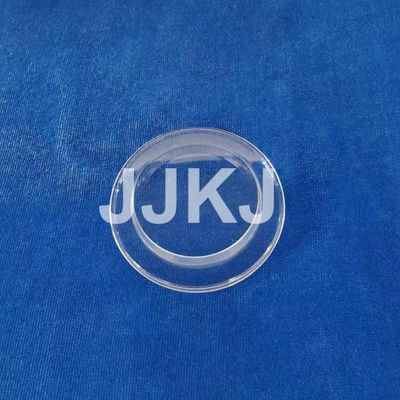

| Product name | Round Sapphire step window |
| Material | Optical sapphire crystal |
| Density | 3.98g/cm³ |
| Hardness Mohs | 9 |
| Fusion point | 2045℃ |
| Boiling point | 2980℃ |
| Diameter | 5-500 mm |
| Diameter Tolerance | as request |
| Thickness | 1-100 mm |
| Thickness Tolerance | as request |
| Surface quality | DSP 60/40 or better |
| Clear Aperture | 90% |
Sapphire Components
Sapphire's range of superior qualities make it ideal for optical and non-optical components.
From the forward-facing optics of imaging systems to the thermal insulators in plasma systems, Sapphire's performance at extreme physical conditions often make it the preferred choice for the following:
Lightguides
Sapphire offers higher working temperatures in applications such as temperature thermometry and IPL systems, with a broad transmission.
Lenses
High optical quality Sapphire is used for lenses in systems that require durability and ruggedness where standard materials suffer from grit, impact and temperature damage. Sapphire lenses also offer high performance in laser devices, offering high thermal conductivity.
The broad transmission of Sapphire, across visible and NIR spectrums, make it ideal for FLIR imaging systems in hazardous environments, or where the reduced thickness of Sapphire lenses lead to reduced system footprint.
Tubes
Sapphire tubes, made using the Stepanov growth method, replace glass and quartz tubes in high temperature and pressure systems such as plasma applications and insulators.
Pins and Rods
As well as the optical proporties offered by Sapphire rods for fibre optcal and light-guide applications, the physical strength and inert nature of Sapphire make it ideal for engineering and structural uses.
