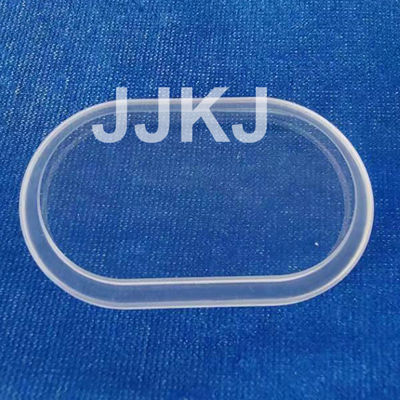

High Purity 99.999% C Axis Sapphire Optical Windows With Step
  • name
  • name
  • name

High Purity 99.999% C Axis Sapphire Optical Windows With Step

MOQ: 10 pcs
Standard Packaging: packed in Capacitor paper +Sponge paper+paper case
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Jingjing
Certification
ISO9001
Product Name:
Optical Sapphire Window With Step
Material:
Al₂O₃
Purity:
99.999%
Orientation:
C-axis
Diamter:
1-500mm
Tolerance:
±0.02mm
Thickness:
0.1-100mm
Thickness Tolerance:
±0.02mm
Surface Quality:
60/40 Or Better
Chamfer:
0.1-0.3mm*45°
Clear Aperture:
90%
Ttransmittance:
99% At 635nm After Coating
Use:
Scanner/Watch Glasses/Medical Devices
Minimum Order Quantity:
10 pcs
Packaging Details:
packed in Capacitor paper +Sponge paper+paper case
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

C Axis Sapphire Optical Windows

,

99.999% Sapphire Optical Windows

,

Sapphire Optical Windows With Step

Product Description

High purity 99.999% C-axis Sapphire Optical Windows with Step

WHY ARE SAPPHIRE WINDOWS SUCH HIGH PERFORMERS?
Sapphire windows and flat stock are incredibly hard, strong and wear resistant:
A sapphire window can be exposed to extreme abradants such as sand and particulates with minimal effect on the clarity of the window. This makes sapphire windows the ideal material for a variety of applications such as: Aerospace windows, downhole and drilling vision systems, inspection windows, watch crystals and gun sights.
Sapphire windows can take pressure like no other clear material, making sapphire windows the go-to transparent material for high-pressure vessels, deep sea windows and sight glasses. Combined with the exceptional thermal and chemical performance of sapphire, a sapphire window is the ideal transparency for pressurized in-process, deep sea and equipment sensors.
Sapphire flats and wear parts are used in applications in which wear is a problem. Systems like canning machines, slide plates, V-blocks, flat bearings and pushers utilize sapphire flats and blocks to extend the lifetime of the equipment and reduce downtime.

Sapphire Step window Specifications:

Product name Sapphire Optical Windows with Step
Material Sapphire
Diameter 1-500 mm
Diameter Tolerance ±0.02 mm
Thickness 0.1-100 mm
Thickness Tolerance ±0.02 mm
Parallelism ≤3 ARC Min
Surface quality 60/40 or better
Chamfer 0.1-0.3mm*45°
Clear Aperture 90%



High Purity 99.999% C Axis Sapphire Optical Windows With Step 0High Purity 99.999% C Axis Sapphire Optical Windows With Step 1High Purity 99.999% C Axis Sapphire Optical Windows With Step 2



Fields of Application for the Optical Sapphire Window:
-Scanner
-Watch glasses
-Semiconductor applications (e.g. wafers)
-Cell phones (displays and display protection)
-Infrared-/ and UV-applications (e.g. sensors, monitoring systems, thermal cameras)
-Medical devices (e.g. endoscope windows, scalpels and laser surgery, light guides in dermatology)
Military applications (e.g. night vision devices and cameras, satellite and space technology, control systems)



High Purity 99.999% C Axis Sapphire Optical Windows With Step 3
