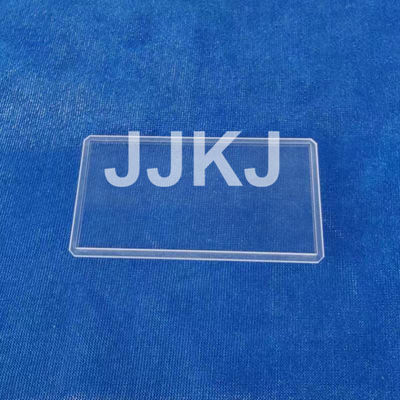

Rectangular Window Sapphire DSP 60/40 Uncoated And AR Coated Window
  • name
  • name

Rectangular Window Sapphire DSP 60/40 Uncoated And AR Coated Window

MOQ: 10 pcs
Standard Packaging: packed in Capacitor paper +Sponge paper+paper case
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Jingjing
Certification
ISO9001
Product Name:
Sapphire Optical Step Window
Material:
Optical Sapphire
Diamter:
0.1-500mm
Tolerance:
±0.03mm
Thickness:
0.1-100mm
Thickness Tolerance:
±0.03mm
Parallelism:
≤3 ARC Min
Surface Quality:
DSP 60/40
Chamfer:
0.1-0.3mm*45°
Clear Aperture:
90%
Ttransmittance:
99% At 635nm After Coating
Use:
Optical
Minimum Order Quantity:
10 pcs
Packaging Details:
packed in Capacitor paper +Sponge paper+paper case
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

Rectangular Window Sapphire

,

Window Sapphire DSP 60/40

,

Uncoated And AR Coated Window

Product Description

Rectangular Step Sapphire Window Uncoated and AR Coated Optical Sapphire Windows

Sapphire Step glass cover
Sapphire optical stepped glass windows are used in a wide variety of applications where spectral isolation is required. They are widely used in electro-optics, aerospace, bio-medical areas. We can custom made according to customer's requirements. The two round surfaces of the stepped windows will be polished. other surfaces only fine grinding.

Sapphire Optical window Specifications:

Product name Sapphire Optical Step window
Material Optical sapphire
Diameter 1-500mm
Diameter Tolerance ±0.03 mm
Thickness 0.1-100m
Thickness Tolerance ±0.03 mm
Parallelism ≤3 ARC Min
Surface quality DSP 60/40
Chamfer 0.1-0.3mm*45°
Clear Aperture 90%



Rectangular Window Sapphire DSP 60/40 Uncoated And AR Coated Window 0Rectangular Window Sapphire DSP 60/40 Uncoated And AR Coated Window 1



Feature of Optical Sapphire Window
-Transmits Wavelengths Ranging From UV to Mid-Infrared
-Extreme Surface Hardness Chemical Resistance
-Thinner and Stronger than Standard Glass Windows
-High thermal conductivity
-High bulk damage threshold



Our related products:Rectangular Window Sapphire DSP 60/40 Uncoated And AR Coated Window 2



FAQ:
Q:What is your minimum order requirement?
A:MOQ: 10 pieces



Q:How long will it take to execute my order?
A:10-25 days after confirming the payment.



Q:Can you give warranty of your products?
A:We promise the quality, if the quality has any problems, we will produce new produces or return you money.



Q:Do you provide free samples?
A:We can provide free samples if we have stock optics as your request,but the freight is yours.



Q:What is your terms of payment?
A:T/T, Western Union ,Paypal




Tags:

sapphire glass windows,

sapphire optical window,

synthetic sapphire window
