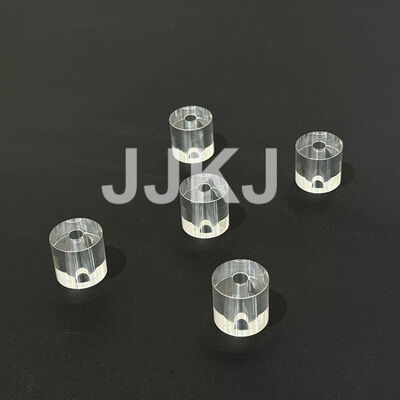

Fully polished synthetic sapphire crystal tube
  • name

Fully polished synthetic sapphire crystal tube

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Material::
Optical Grade Sapphire
Orientation::
C-axis
Diameter:
6-200mm
Diameter Tolerance:
±0.1mm
Length:
1-110mm
Length Tolerance:
±0.1mm
Surface Quality:
80/50
Coating:
According To Customer Requirements
Clear Aperture:
85%
Use:
Optical
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

polished synthetic sapphire crystal tube

,

sapphire tube fully polished

,

synthetic sapphire tube crystal

Product Description

Fully polished synthetic sapphire crystal tube

What is Sapphire merit?

①- Thinner and Stronger than Standard Glass Windows

②- Features Extreme Surface Hardness and Chemical Resistance

③- Transmits Wavelengths Ranging From UV to Mid-Infrared

Sapphire Tubes are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.



Product Paramenters:

Product Name Polished Sapphire Tube
Material Optical Sapphire
Hardness Mohs 9
Purity 99.999%
Outside diameter 6-200 mm
Tolerance ±0.1 mm
Length 1-110 mm
Length Tolerance ±0.1 mm
Wall thickness ≥1 mm
Surface quality 80/50
Clear Aperture 85%
Applications Optical, Medical, Industrial



Fully polished synthetic sapphire crystal tubeFully polished synthetic sapphire crystal tube

FAQ:

Q:What are your main products?

A: Sapphire optical windows,sapphire lenses,sapphire rod/pin,sapphire tube,Sapphire prism,Sapphire/Ruby Ball



Q:How long is your delivery time?

A: In general delivery time is about 25 days for custom produced optics,except stock ones or some special optics.



Q:Do you provide free samples?

A: We can provide free samples if we have stock optics as your request,but the freight is yours.



Q:What is your MOQ?

A:MOQ is 10pcs



Q:What is your terms of payment?

A:T/T, Western Union ,Paypal
