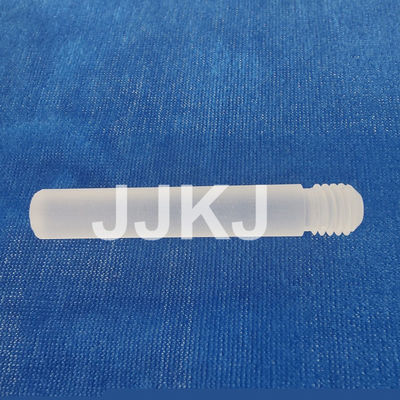

High Precision Sapphire Rods Stock Optical Glass Rod With Screw Thread

High Precision Sapphire Rods Stock Optical Glass Rod With Screw Thread

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Product Name:
Sapphire Optical Rod Lens With Screw Thread
Material:
Optical Sapphire
Hardness:
Mohs 9.0
Density:
3.98g/cm³
Diameter:
0.1-100mm
Diameter Tolerance:
±0.03mm
Length:
0.5-300mm
Length Tolerance:
±0.03mm
Melting Point:
2045°C
Structure:
Plano-convex
Use:
Optical
Surface:
Fine Grinding
Application:
Medical Endoscope Lens/Optical Equipment
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

High Precision Sapphire Rods Stock

,

Optical Glass Rod With Screw Thread

,

High Precision Optical Glass Rod

Product Description

Manufacturer High Precision Sapphire Optical Rod Lens with Screw thread

Sapphire Glass rod lens:

Designed for use in a variety of laser and imaging systems, these components are available in a range of micro sizes for integration into a host of OEM applications. Custom sizes, variations in polishing/ ground surfaces and additional coatings are available upon request.
Optical performance of rod Lenses is similar to a cylinder lens. Collimated light passing through the diameter of the rod lens will be focused into a line. N-BK7 and UV Fused Silica substrates are available for a variety of UV, Visible and NIR applications..
Normally the rod lens is polished on two ends and fine grinding on side surface.
But it is also can be unpolished or all the surface polished into transparent.
Yutai optics can supply the rod lens according to your any request.

Features:

1.Product Name: Sapphire Rod lens with Screw thread

2.Material: Optical Sapphire

3.Hardness: Mohs 9.0

4.Shape:Cylindrical

5.Density: 3.98g/cm³

6.Uses: Optical

7.Application:Medical Endoscope Lens/Optical Equipment

8.Coating:Customize

Technical Parameters:

Product name

Sapphire Rod lens with Screw thread

Material

Optical Grade Sapphire

Hardness

Mohs 9.0

Density

3.98g/cm³

Diameter

1-380mm customize for request

Diameter tolerance

±0.03mm

Length

1-500mm

Length tolerance

±0.03mm

Application

Medical Endoscope Lens/Optical Equipment

Surface

Fine Grinding

  High Precision Sapphire Rods Stock Optical Glass Rod With Screw Thread 0

High Precision Sapphire Rods Stock Optical Glass Rod With Screw Thread 1Applications:

High Precision Sapphire Rods Stock Optical Glass Rod With Screw Thread 2



Delivery:High Precision Sapphire Rods Stock Optical Glass Rod With Screw Thread 3
