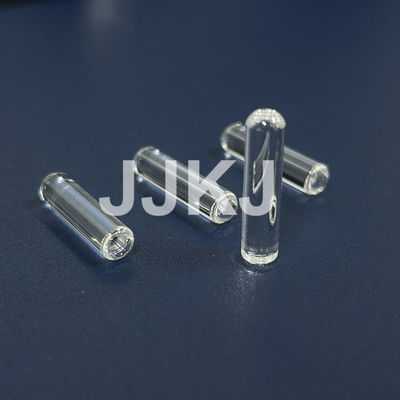

Optical Sapphire Rods Plano Convex Sapphire Glass Lens For Laser Machine

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Material:
Optical Sapphire
Hardness:
9 On Mohs Scale
Density:
3.98g/cm³
Structure:
Plano-convex
Diameter:
0.1-100mm
Diameter Tolerance:
0/-0.03mm
Length:
0.5-100mm
Length Tolerance:
0/-0.03mm
Melting Point:
2045°C
Use:
Optical
Application:
Medical Endoscope Lens/Optical Equipment
Surface Quality:
80/50 Or Better
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

Optical Sapphire Rods

,

Plano Convex Sapphire Glass Lens

,

Laser Machine Sapphire Rods

Product Description

Optical Components Design Optical Sapphire Rod Lens for Laser Machine

Sapphire Rod lens is a special type of cylinder lens, and is highly polished on the circumference and ground on both ends. Rod lenses perform in a manner analogous to a standard cylinder lens, and can be used in beam shaping and to focus collimated light into a line. Our rod lenses play a key part in many laser and imaging optical assemblies, and can be used for UV, visible and NIR applications.



Features:

  • Product Name: Sapphire Rod lens
  • Material: Optical Sapphire
  • Hardness: 9 On Mohs Scale
  • Shape:Cylindrical
  • Density: 3.98g/cm³
  • Uses: Optical
  • Application:Medical Endoscope Lens/Optical Equipment

8.Coating:Customize

Technical Parameters:

Product name Optical Sapphire Rod Lens
Material Material
Hardness Mohs 9
Density 3.98g/cm³
Refractive index 1.76
Diameter 0.1-100 mm
Diameter Tolerance 0/-0.03 mm
Length 0.5-100 mm
Length Tolerance 0/-0.03 mm
Surface quality  80/50 or better
Surface quality 90%
  Optical Sapphire Rods Plano Convex Sapphire Glass Lens For Laser Machine 0Applications:

Optical Sapphire Rods Plano Convex Sapphire Glass Lens For Laser Machine 1Our main Products:

Optical Sapphire Rods Plano Convex Sapphire Glass Lens For Laser Machine 2

FAQ:
Q:What is your minimum order requirement?
A:MOQ: 10 pieces


Q:How long will it take to execute my order ?
A:10-25 days after confirming the payment.


Q:Can you give warranty of your products ?
A:We promise the quality, if the quality has any problems, we will produce new produces or return you money.


Q: Do you provide free samples?
A: We can provide free samples if we have stock optics as your request,but the freight is yours.


Q: What is your terms of payment ?
A:T/T, Western Union ,Paypal
