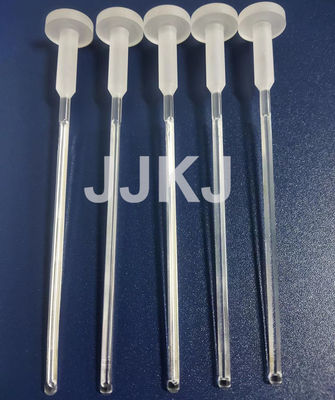

High Precision Sapphire Crystal Lens Cylindrical Sapphire Rods
  • name
  • name
  • name

High Precision Sapphire Crystal Lens Cylindrical Sapphire Rods

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Product Name:
Sapphire Optical Rod
Material:
Sapphire
Chemical Formula:
Al₂O₃
Purity:
99.999%
Refractive Index:
1.76
Diameter:
0.1-100mm
Diameter Tolerance:
±0.02
Length:
0.5-300mm
Length Tolerance:
±0.02
Use:
Optical
Surface Quality:
80/50 Or Better
Application:
Medical Endoscope Lens/Optical Equipment
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

High Precision Sapphire Rods

,

Cylindrical Sapphire Crystal Lens

,

High Precision Sapphire Crystal Lens

Product Description

Custom High Precision Sapphire Crystal Cylindrical Lenses Optical Glass Rod Lens

Sapphire Glass rod lens:
Designed for use in a variety of laser and imaging systems, these components are available in a range of micro sizes for integration into a host of OEM applications. Custom sizes, variations in polishing/ ground surfaces and additional coatings are available upon request.
Optical performance of rod Lenses is similar to a cylinder lens. Collimated light passing through the diameter of the rod lens will be focused into a line. N-BK7 and UV Fused Silica substrates are available for a variety of UV, Visible and NIR applications..
Normally the rod lens is polished on two ends and fine grinding on side surface.
But it is also can be unpolished or all the surface polished into transparent.
Yutai optics can supply the rod lens according to your any request.

Features:

1.Product Name: Sapphire Optical Rod lens
2.Material: Optical Sapphire
3.Hardness: Mohs 9.0
4.Shape:Cylindrical
5.Density: 3.98g/cm³
6.Uses: Optical
7.Application:Medical Endoscope Lens/Optical Equipment
8.Coating:Customize

Technical Parameters:

Product name

Sapphire Optical Rod Lens

Material

Sapphire

Hardness

Mohs 9.0

Density

3.98g/cm³

Diameter

0.1-100 mm

Diameter tolerance

as request

Length

0.5-300 mm

Length tolerance

as request

Application

Medical Endoscope Lens/Optical Equipment

Surface quality

80/50 or better


High Precision Sapphire Crystal Lens Cylindrical Sapphire Rods 0
Applications:
High Precision Sapphire Crystal Lens Cylindrical Sapphire Rods 1

High Precision Sapphire Crystal Lens Cylindrical Sapphire Rods 2

FAQ:
Q: What are your main products?
A: Sapphire optical windows,sapphire lenses,sapphire rod/pin,sapphire tube,Sapphire prism,

Q: How long is your delivery time?
A: In general delivery time is about 25 days for custom produced optics,except stock ones or some special optics.

Q: Do you provide free samples?
A: We can provide free samples if we have stock optics as your request,but the freight is yours.

Q:What is your MOQ ?
A:MOQ is 10pcs

Q: What is your terms of payment ?
A:T/T, Western Union ,Paypal
