Convex Cylindrical Synthetic Sapphire Rods 60/40 Optical Glass Rod

Products

Optical Sapphire Shaped Pieces

Convex Cylindrical Synthetic Sapphire Rods 60/40 Optical Glass Rod

MOQ:	10 pcs
Delivery Period:	1-4 weeks
Payment Method:	T/T,Western Union,
Supply Capacity:	100000 pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

jingjing

Certification

ISO9001

Material:

Optical Sapphire

Hardness:

9 On Mohs Scale

Diameter:

0.1-100mm

Diameter Tolerance:

0/-0.03mm

Length:

0.5-300mm

Length Tolerance:

0/-0.03mm

Melting Point:

2045°C

Structure:

Plano-convex

Use:

Optical

Application:

Medical Endoscope Lens/Optical Equipment

Surface Quality:

60/40

Minimum Order Quantity:

10 pcs

Delivery Time:

1-4 weeks

Payment Terms:

T/T,Western Union,

Supply Ability:

100000 pcs/Month

Highlight:

Cylindrical Synthetic Sapphire Rods

Convex Synthetic Sapphire Rods

60/40 Optical Glass Rod

Product Description

Convex Cylindrical Optical Sapphire Glass Rods Lenses For Sale

Product Description:

Sapphire is composed of alumina, and its crystal structure is hexagonal lattice structure.
Synthetic sapphire common application facets are A-Plane,C-Plane, and R-Plane. Due to the wide optical penetration band of sapphire, it has good light transmission from near ultraviolet (190nm) to mid-infrared. Therefore, it is widely used in optical components, infrared devices, high-intensity laser lens materials.
Sapphire also has the characteristics of high sound velocity, high temperature resistance, corrosion resistance, high hardness, high light transmittance, high melting point (2045℃), etc., so it is often used as a material for photoelectric components.

Properties of Single Crystal Sapphire:

Chemical formula	Al₂O₃
Purity	99.999%
Crystal structure	Hexagonal
Density	3.98g/cm³
Hardness Mohs	9
Fusion point	2045℃
Boiling point	2980℃
Coefficient of Thermal Expansion	5.8×10 -6 /K
Specific heat	0.418W.s/g/k
Thermal conduction	25.12W/m/k(@100°C)
Refractive index	no=1.768 ne=1.760
dn/dt	13×10-6/K(@633nm)
Transmission	T≈80%(0.3-5μm)
Permittivity	11.5(//c), 9.3(⊥c)

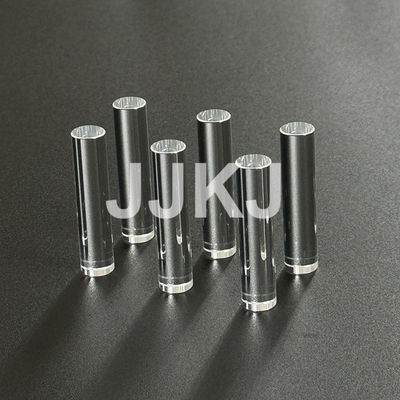

The pictures of the Sapphire optical rod lens:

Convex Cylindrical Synthetic Sapphire Rods 60/40 Optical Glass Rod 2

Product Paramenters:

Product name	Optical Sapphire Glass Rods Lenses
Material	Sapphire(Al₂O₃)
Hardness	Mohs 9
Diameter	0.1-100 mm
Diameter Tolerance	0/-0.03 mm
Length	0.5-300 mm
Length Tolerance	0/-0.03 mm
Surface quality	60/40
Application	Medical Endoscope Lens/Optical Equipment

Applications:

Convex Cylindrical Synthetic Sapphire Rods 60/40 Optical Glass Rod 4
