High Hardness Sapphire Rods Glass Cylinder 40/20 Sapphire Crystal Lens

Products

Optical Sapphire Shaped Pieces

High Hardness Sapphire Rods Glass Cylinder 40/20 Sapphire Crystal Lens

MOQ:	10 pcs
Delivery Period:	1-4 weeks
Payment Method:	T/T,Western Union,
Supply Capacity:	100000 pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

jingjing

Certification

ISO9001

Product Name:

Polished Optical Sapphire Rod

Material:

Optical Sapphire Crystal

Hardness Mohs:

9.0

Density:

3.98g/cm³

Diameter:

As Request

Diameter Tolerance:

0/-0.03 Mm

Length:

As Request

Length Tolerance:

0/-0.03 Mm

Melting Point:

2045°C

Structure:

Plano-convex

Use:

Optical

Application:

Medical Endoscope Lens/Optical Equipment

Surface Quality:

60/40

Minimum Order Quantity:

10 pcs

Delivery Time:

1-4 weeks

Payment Terms:

T/T,Western Union,

Supply Ability:

100000 pcs/Month

Highlight:

High Hardness Sapphire Rods

Sapphire Rods Glass Cylinder

40/20 Sapphire Crystal Lens

Product Description

Sapphire rod lenses optical high hardness glass cylinder lens 40/20 surface quality

Advantages of sapphire:

Sapphire is composed of alumina, and its crystal structure is hexagonal lattice structure.

Synthetic sapphire common application facets are A-Plane,C-Plane, and R-Plane. Due to the wide optical penetration band of sapphire, it has good light transmission from near ultraviolet (190nm) to mid-infrared. Therefore, it is widely used in optical components, infrared devices, high-intensity laser lens materials.

Sapphire also has the characteristics of high sound velocity, high temperature resistance, corrosion resistance, high hardness, high light transmittance, high melting point (2045℃), etc., so it is often used as a material for photoelectric components.

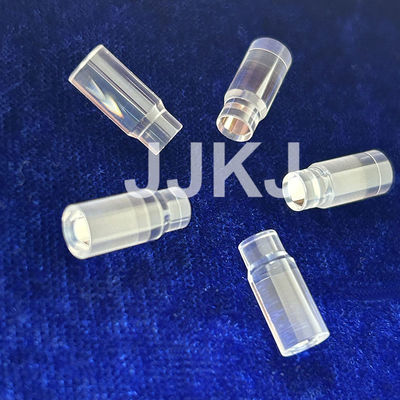

High Hardness Sapphire Rods Glass Cylinder 40/20 Sapphire Crystal Lens 0
Technical Parameters:

Product name	Polished Optical Sapphire rod
Material	Optical Grade Sapphire
Hardness Mohs	9.0
Diameter	As request
Diameter tolerance	0/-0.03 mm
Length	As request
Length tolerance	0/-0.03 mm
Coating	As Customer's request

Applications:

High Hardness Sapphire Rods Glass Cylinder 40/20 Sapphire Crystal Lens 2 Light bar is one of the types of glass fiber, lined by a bunch of multicomponent glass fiber wire melting and carefully, can be
used to spread the light transmission and low resolution image, its advantage is wide spectral range, optical transmission
efficiency is high, the output facula equalization, temperature resistant performance is good, mainly is suitable for the original
light, tail cone receive concentrating light rods can obviously improve the light output. Lens such as plano convex,plano
concave,biconvex,biconcave. Telescope :binocular telescope,digital camera.

High Hardness Sapphire Rods Glass Cylinder 40/20 Sapphire Crystal Lens 3

FAQ:
1. Can you accept OEM?
Of course,we can manufacture as per your request specification.

2. Can you deliver the goods via our shipping agent?
It's our pleasure to make the delivery using your shipping agent

3. What about your After-sales service?
We can change or refund products if there are any quality problem.

If you need more professional help, please contact us. Our technical engineers
would like to give advices according to your requirements
