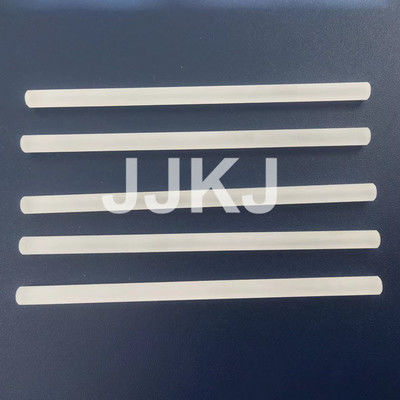

Unpolished Sapphire Rod Cylindrical Sapphire Optical Lenses
  • name

Unpolished Sapphire Rod Cylindrical Sapphire Optical Lenses

MOQ: 10 pcs
Delivery Period: 1-4 weeks
Payment Method: T/T,Western Union,
Supply Capacity: 100000 pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
jingjing
Certification
ISO9001
Product Name:
Unpolished Sapphire Rod
Material:
Sapphire(Al₂O₃)
Hardness:
Mohs 9.0
Density:
3.98g/cm³
Surface:
Fine Grinding
Roughness:
1.0μm
Diameter:
0.1-100mm
Diameter Tolerance:
As Request
Length:
0.5-200mm
Length Tolerance:
As Request
Structure:
Plano-convex
Use:
Optical
Application:
Medical Endoscope Lens/Optical Equipment
Minimum Order Quantity:
10 pcs
Delivery Time:
1-4 weeks
Payment Terms:
T/T,Western Union,
Supply Ability:
100000 pcs/Month
Highlight:

Unpolished Sapphire Rod

,

Sapphire Rod Cylindrical

,

Cylindrical Sapphire Optical Lenses

Product Description

Unpolished Sapphire Cylindrical Lenses Optical Glass Rod Lens

Sapphire Materials

Sapphire is grown using various different methods, each with its advantages. By offering Sapphire grown by Stepanov, Czochralski, Kryopolus and HDSM methods, Roditi ensure that the specification is met with the best production time and cost in mind.

Boules, Ingots and Blanks

Unprocessed, single crystal Sapphire takes the form of a boule before being cut and polished into the required forms.

The boule is a large, cylindrical-like piece of Sapphire with no ground, polished or flat faces and offers any crystallographic orientation of components, such as c, m, r and a-cut. Because of Sapphire's tremendous hardness, the cutting and processing is done with diamond tools.

Boules such as this are processed into blanks and ingots ready for further processing and polishing. Such blanks and ingots are uniformly shaped, usually as cylinders, and have ground surfaces.

Features:

1.Product Name: Unpolished Sapphire Rod lens

2.Material: Sapphire(Al₂O₃)

3.Hardness:Mohs 9.0

4.Purity:99.999%

5.Density: 3.98g/cm³

6.Fusion point:2045℃

7.Boiling point:2980℃

8.Refractive inde:1.76

9.Surface:Fine Grinding

10.Roughness:1.0μm

Technical Parameters:

Product name

Unpolished Sapphire Rod lens

Material

Optical Sapphire

Hardness Mohs

9.0

Diameter

0.1-100 mm

Diameter tolerance

 As request

Length

0.5-100 mm

Length tolerance

As request

Application

Medical Endoscope Lens/Optical Equipment

Surface

Fine Grinding
Roughness 1.0μm
 Unpolished Sapphire Rod Cylindrical Sapphire Optical Lenses 0



Applications:

Unpolished Sapphire Rod Cylindrical Sapphire Optical Lenses 1





What products can we offer:



Unpolished Sapphire Rod Cylindrical Sapphire Optical Lenses 2Unpolished Sapphire Rod Cylindrical Sapphire Optical Lenses 3
